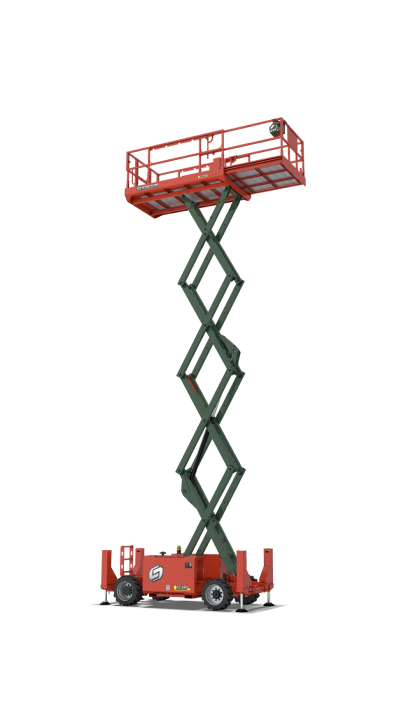

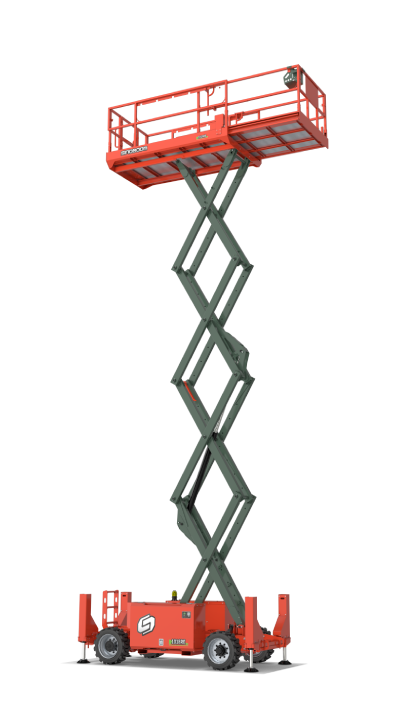

GTJZ1018RE (3369RE)

Rough Terrain Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    12m (39'4")

  • [A] Max Platform Height

    10m (32'10")

  • [B] Max Horizontal Extension

    1.5m (4'11")

  • [C] Length-Stowed
    (Outriggers/Without Outriggers)

    3.8m/3.19m (12'6"/10'6")

  • [D] Width-Stowed

    1.77m (5'10")

  • Height - stowed (Rail Folded)

    1.96m (6'5")

  • [E] Height - stowed
    (Rail Unfolded)

    2.59m (8'6")

  • [F] Wheelbase

    2.28m (7'6")

  • Ground Clearance

    0.22m (9")

  • Platform Dimensions(L×W×H)

    2.8m×1.6m×1.1m (9'2"×5'3"×3'6")
Performance

  • Platform Allowable Occupants
    (Indoor)

    4 Persons

  • Platform Allowable Occupants
    (Outdoor)

    2 Persons

  • Platform Capacity

    450kg (992lbs)

  • Drive Speed-Stowed

    6km/h (3.7mph)

  • Drive Speed-Raised

    0.48km/h (0.3mph)

  • Elevation Time
    (Unloaded)

    42s~52s

  • Descent Time
    (Unloaded)

    40s~50s

  • Gradeability

    35%

  • Turning Radius
    (Inside/Outside)

    2.11m/4.6m (6'11"/15'1")

  • Tilt Rating
    (Front to Back)

    3°

  • Tilt Rating
    (Side to Side, Outrigger Tele-In/Tele-Out)

    2°/0.8°

  • Max Outrigger Leveling
    (Front to Back)

    5.3° (front)/4.2° (back)

  • Max Outrigger Leveling
    (Side to Side)

    11.7°

  • Tyres-solid

    26x12-16.5 Solid foam-filled
Power

  • Power Source

    8x6V, 390Ah

  • Drive Mode

    2WD×2WS

  • Fuel Tank Capacity - Diesel

    -

  • Hydraulic System Capacity

    72L (15.8 UK gal / 19 US gal US)


  • Weight
    (Outriggers/Without Outriggers)

    4,510kg (9,943lbs) / 4,050kg (8,929lbs)

  • Standards Compliance

    CE/ANSI/EAC
Download Brochures
Standard features
  • 2WDX2WS
  • Forklift pockets and lifting points
  • Proportional control
  • Manual storage box
  • Flashing beacon
  • Emergency lowering system
  • Emergency stop
  • Electrophoretic painting
  • Tilt protection system
  • Foam-filled non-marking tires
  • Foldable guardrail
  • Auto braking system
  • Overload sensing system
  • Oscillating axle
  • Fault diagnosis system
  • Horn & buzzer
  • Drivable at full height
Optional features
  • AC power cable to platform
  • Platform work light
  • Overhead anti-collision device
  • Telematics-ready connector
  • 7.4m platform
