HOME>PRODUCTS>Telescopic Boom Lift>TB40 (TB1290)

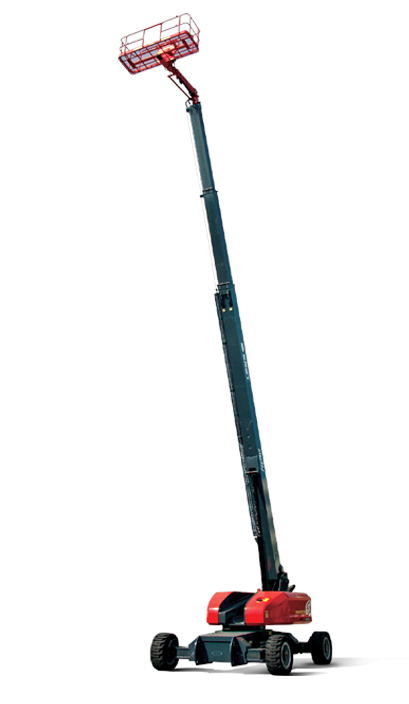

TB40 (TB1290)

Engine Powered Telescopic Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • Smart maintenance

    ■ Smart 7-inch large-screen display, fault and status information display
    for easy viewing of machine status and fault diagnosis, parameters and
    settings

  • Safe Range Control

    ■ Beyond the operating range, the boom automatically retracts to a safe
    range

  • Precision performance

    ■ 3 full-scale handle gradient control, boom swing, boom extension,
    turntable rotation and walking speed, smooth start and stop motion,
    accuracy in reaching the operation target

  • More efficient performance

    ■ TB40 up to 340kg(unrestricted) and 480kg(restricted) rated load, TB42J
    up to 250kg(unrestricted) and 480kg(restricted) and a flying arm which
    can be horizontally rotated for higher operating efficiency

  • Mobility and powerful driving ability

    ■ 4WD, 5 steering modes, flexible maneuvering, flexible movement
    even when outrigger is extended to 3.81 meters during operation The
    telescopic legs are also equipped with a floating device, which has
    excellent field adaptability and off-road performance on uneven ground
    ■ 45% gradeability, and proprietary patented technology for anti-skid
    control to ensure a strong off-road capability
Dimensions

  • Max Platform Height

    41.2m (135'2")

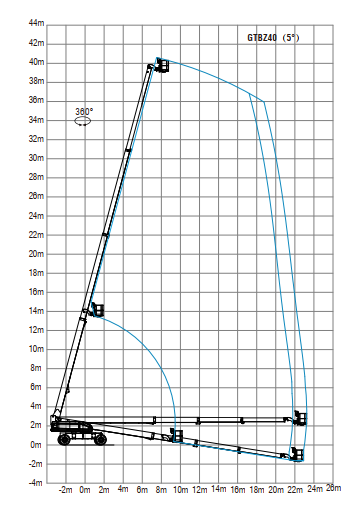

  • Max Working Height

    40.4m (132'6.5")

  • Max Horizontal Extension

    23.2m (76'1")

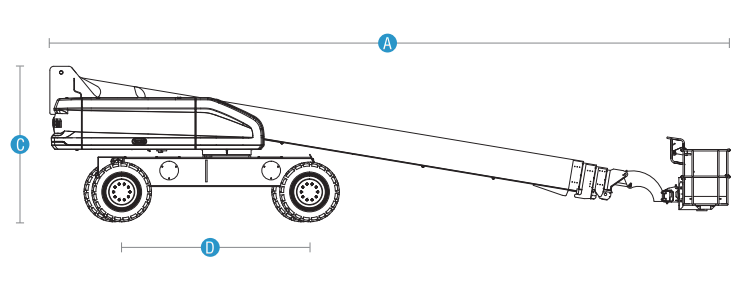

  • [A] Length-Stowed

    13.8m (45'3")

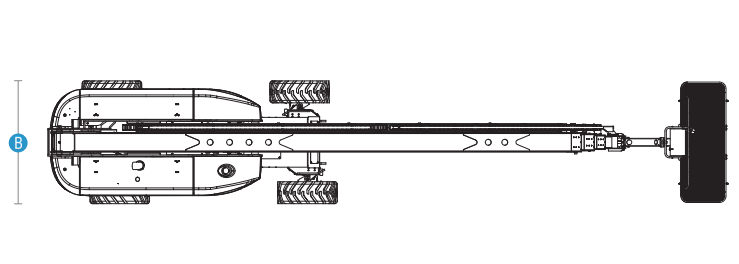

  • [B] Width

    2.49m (8'2")

  • [C] Height-Stowed

    3.15m (10'4")

  • [D] Wheelbase

    3.81m (12'6")

  • Ground Clearance

    0.65m (2'2")

  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1m (96×36×43")
Performance

  • Platform Capacity
    (Unrestricted)

    340kg(750lbs), 2 persons

  • Platform Capacity
    (restricted)

    480kg(1,058lbs),2 persons

  • Turntable Rotation

    360° continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    4.4km/h / 2.7mph

  • Drive Speed-Raised

    1.1km/h (0.68mph)

  • Gradeability

    40%(4WD)

  • Turning Radius-Inside

    4.37m (14'4")

  • Turning Radius-Outside

    6.81m (22'4")

  • Turntable Tailswing

    1.68m (5'6")

  • Tilt Rating

    5°

  • Max Operating Noise Level

    82dB(A)

  • Drive×Steer

    4WD×4WS

  • Tyres-solid

    445/50D710 18PR Foam-filled tyres
Power

  • Power Source (Optional)

    [Cummins QSF2.8t3TC72, 54kW, China 3 emission standard/EU Stage 3A] or
    [Deutz TD2.9L4, 55.4kW, USA EPA Tier 4f]

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    200L (44gal)

  • Hydraulic Tank Capacity

    250L (55gal)


  • Weight

    20,960kg(4WD) / 46,209lbs(4WD)

  • Standards Compliance

    CE
Download Brochures
Standard features
  • Electrical leveling platform
  • Fault diagnosis system
  • Dual-speed drive motor
  • Platform 160° hydraulic rotation
  • Swing-out engine
  • Diverged/converged anti-slip system
  • Drive enable system
  • Engine restart protection
  • Patented anti-slip
  • 3 joysticks with variable proportional control
  • Engine malfunction automatic shutdown
  • Foam-filled tyres
  • Automotive-style all-tube protection
  • Engine preheating
  • 4-wheel brake
  • Horn and buzzer alarms
  • Emergency stop system
  • Emergency brake release
  • Rotating warning lamp
  • Emergency lowering system
  • 4WD
  • Tilt protection
  • Max allowable inclination up to 5°
  • 4 steering modes: front wheel steering, rear wheel steering, crab steering and 4-wheel steering
  • Overload sensing system
  • 360°continuous turntable rotation
  • Telescopic axle
  • 7-inch screen
  • Hydraulic cooler
Optional features
  • AC cable to platform
  • Hydraulic generator(3.5kW)
  • Platform Headlight
  • Overhead anti-collision device
