GTJZ1323RH (4389RH)

HOME>PRODUCTS>SCISSOR LIFT>GTJZ1323RH (4389RH)

Rough Terrain Scissor Lifts

Working Height

15.1m

Platform Capacity

680kg

Gradeability

50%

Get a Quote

Download Brochures

SPECIFICATIONS
Standard/Optional
APPLICATIONS

Dimensions

Max Working Height

15.1m (49'7")

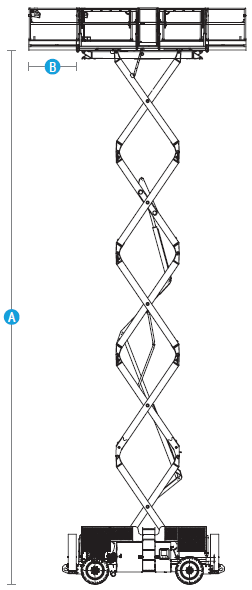

[A] Max Platform Height

13.1m (43’)
[B] Max Horizontal Extension

1.5m (4'11")
[C] Length-Stowed
(Outriggers/Without Outriggers)

1.5m/1.2m (4'11"/3'11")
[D] Width-Stowed

2.28m (7'6")
Height - stowed (Rail Folded)

2.22m (7'3")
[E] Height - stowed
(Rail Unfolded)

2.98m (9'9")
[F] Wheelbase

2.84m (9'4")
Ground Clearance

0.36m (1’2")
Platform Dimensions(L×W×H)

3.98mx1.83mx1.1m (13'x6'x3'7")

Performance

Platform Allowable Occupants
(Indoor)

4 Persons
Platform Allowable Occupants
(Outdoor)

4 Persons
Platform Capacity

680kg (1,499lbs)
Drive Speed-Stowed

5.3km/h (3.3mph)
Drive Speed-Raised

1.1km/h (0.68mph)
Elevation Time
(Unloaded)

60s~80s
Descent Time
(Unloaded)

50s~60s
Gradeability

50%
Turning Radius
(Inside/Outside)

2.2m/5.3m (7'3"/17'5")
Tilt Rating
(Front to Back)

3°
Tilt Rating
(Side to Side, Outrigger Tele-In/Tele-Out)

2°/0.8°
Max Outrigger Leveling
(Front to Back)

7°
Max Outrigger Leveling
(Side to Side)

12°
Tyres-solid

33x12-20 / solid

Power

Power Source

2x24 V, 480 Ah
Drive Mode

4WD x 2WS
Fuel Tank Capacity - Diesel

3.3L (0.22 UK gal) / 0.26 US gal)
Hydraulic System Capacity

110L (24 UK gal / 29 US gal)

Weight
(Outriggers/Without Outriggers)

-
Standards Compliance

8,560kg (18,871lbs)

Download Brochures

Standard features

2WDx2WS
Fault diagnosis system
Maintenance-free battery
Oscillating system
Tilt protection system
Raised traveling
Auto braking system
Emergency stop buttons
Overload sensing system

Optional features

AC power cable to platform
Platform work light
Overhead anti-collision device
Non-marking tires
Headlight
