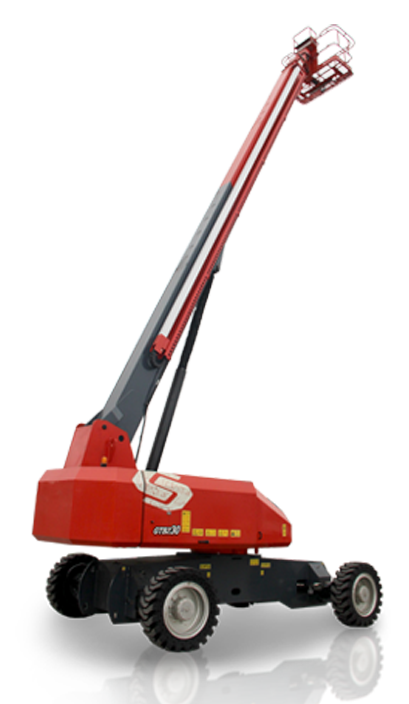

TB30 (TB1000)

Engine Powered Telescopic Boom Lifts
Working height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • High Capacity

    Plus series boom lifts hold up to 454kg (1,000lbs) (restricted) / 300kg (661lbs) (unrestricted), allowing you to carry up to 3 occupants plus material and
    tools to get your job done easily.

  • Oscillating Function

    Both the active and inactive states have an oscillating function, allowing work to
    be performed on inclines and uneven ground.

  • Intelligent Maintenance

    Industry leading 7" screen displays faults and status information, for easy
    reference, reducing service technician assistance. Workers can complete tasks
    under the remote guidance of qualifi ed service technicians.Convenient for fl eet
    managers to quickly access live machine and maintenance information.

  • Precision Performance

    The upper control box is equipped with 3 full-proportional handles for gradual
    control of boom lifting, telescoping, turntable rotation and driving speed.
    Operate with smooth starting and stopping and precision approach to your
    worksite target.
Dimensions

  • Max Platform Height

    30.4m (99'9")

  • Max Working Height

    32.4m (106'3.5")

  • Max Horizontal Extension

    21m (68'11")

  • [A] Length-Stowed

    13m (42'8")

  • [B] Width

    2.49m (8'2")

  • [C] Height-Stowed

    3.08m (10'1")

  • [D] Wheelbase

    3.66m (12')

  • Ground Clearance

    0.43m (1'5")

  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1m (96×36×43")
Performance

  • Platform Capacity
    (Unrestricted)

    340kg(750lbs), 2 persons

  • Platform Capacity
    (restricted)

    480kg(1,058lbs),2 persons

  • Turntable Rotation

    360°

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    4.4km/h / 2.7mph

  • Drive Speed-Raised

    1.1km/h (0.68mph)

  • Gradeability

    42%(4WD)

  • Turning Radius-Inside

    2.56m (8'5")

  • Turning Radius-Outside

    5.57m (18'3")

  • Turntable Tailswing

    1.82m (6')

  • Tilt Rating

    5°

  • Max Operating Noise Level

    82dB(A)

  • Drive×Steer

    4WD×4WS

  • Tyres-solid

    385/65-24/10 Solid
Power

  • Power Source (Optional)

    [Cummins QSF2.8t3TC72, 54kW, EU Stage 3A] or
    [Deutz TD2.9L4, 55.4kW, USA EPA Tier 4f]

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    200L (44gal)

  • Hydraulic Tank Capacity

    200L (44gal)


  • Weight

    18,670kg(4WD) / 41,160lbs(4WD)

  • Standards Compliance

    CE/GB
Download Brochures
Standard features
  • Platform hydraulic leveling
  • 7-inch screen
  • Dual-speed drive motor
  • Platform 160° hydraulic rotation
  • Fault diagnosis system
  • Diverged/converged anti-slip system
  • Drive enable system
  • Swing-out engine
  • Patented anti-slip
  • 3 joysticks with variable proportional control Engine restart protection
  • Foam-filled tyres
  • Automotive-style all-tube protection
  • Engine malfunction automatic shutdown
  • 4-wheel brake
  • Horn and buzzer alarms
  • Engine preheating
  • Emergency brake release
  • Rotating warning lamp
  • Emergency stop system
  • 4WD
  • Tilt protection
  • Emergency lowering system
  • Outrigger oscillating axle
  • Overload sensing system
  • Max allowable inclination up to 5°
  • 360°continuous turntable rotation
Optional features
  • Optional 1.45m(4'9") work platform
  • Optional 1.83m(6')work platform
  • Solid tyres
  • AC cable to platform
  • Hydraulic generator(3.5kW)
  • Headlight
  • Overhead anti-collision device
  • 2WD
  • Outrigger without oscillating axle
