TB20 (TB680)

Engine Powered Telescopic Boom Lifts
Working height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

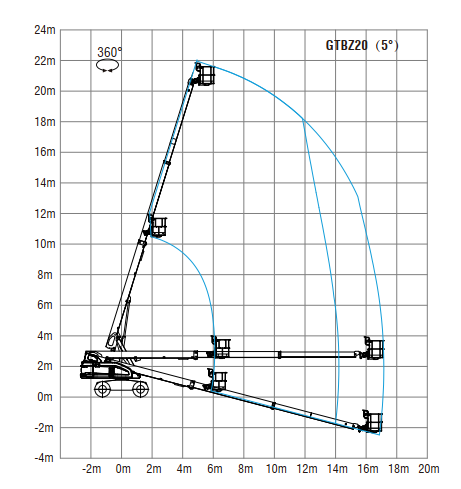

  • Max Platform Height

    20.6m (67'7")

  • Max Working Height

    22.6m (74'2")

  • Max Horizontal Extension

    17.1m (56'1")

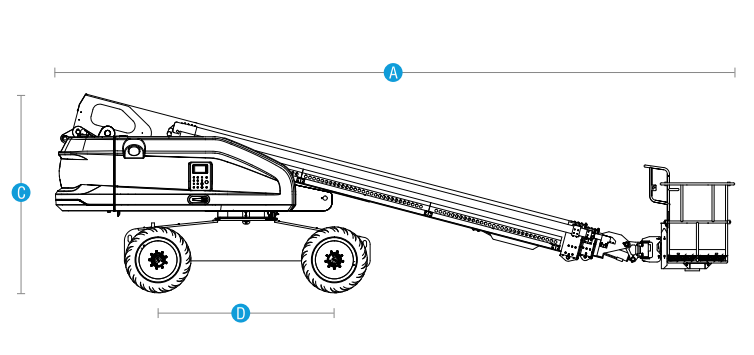

  • [A] Length-Stowed

    9.57m (31'5")

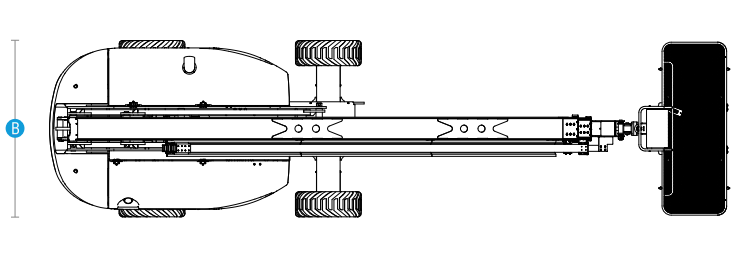

  • [B] Width

    2.49m (8'2")

  • [C] Height-Stowed

    2.84m (9'4")

  • [D] Wheelbase

    2.49m (8'2")

  • Ground Clearance

    0.45m (1'6")

  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1m (96×36×43")
Performance

  • Platform Capacity
    (Unrestricted)

    250kg(551lbs), 2 persons

  • Platform Capacity
    (restricted)

    480kg(1,058lbs), 2 persons

  • Turntable Rotation

    360°

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    6.3km/h(2WD) / 4.8km/h(4WD)

  • Drive Speed-Raised

    1.1km/h (0.68mph)

  • Gradeability

    30%(2WD)/45%(4WD)

  • Turning Radius-Inside

    2.4m (7'10.5")

  • Turning Radius-Outside

    5.6m (18'4.5")

  • Turntable Tailswing

    1.42m (4'8")

  • Tilt Rating

    5°

  • Max Operating Noise Level

    82dB(A)

  • Drive×Steer

    2WD×2WS/4WD×2WS

  • Tyres-solid

Power

  • Power Source (Optional)

    [Cummins QSF2.8t3NA60, 43kW, EU Stage 3A/EPA Tier 3] or
    [Deutz TD2.9L4, 55.4kW, USA EPA Tier 4f]

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    160L (35.2gal)

  • Hydraulic Tank Capacity

    170L (37.4gal)


  • Weight

    12,018kg(2WD) / 12,088kg(4WD)
    26,495lbs(2WD) / 26,649lbs(4WD)

  • Standards Compliance

    CE/ANSI/CSA
Download Brochures
Standard features
  • Platform hydraulic leveling
  • 7-inch color screen
  • Dual-speed drive motor
  • Platform 160° hydraulic rotation
  • Fault diagnosis system
  • Diverged/converged
  • Rear detection and travel verification
  • Swing-out engine
  • Anti-slip system
  • 3 joysticks with variable proportional control
  • Engine restart protection
  • Patented anti-slip
  • Automotive-style all-tube protection
  • Engine malfunction automatic shutdown
  • Foam-filled tyres
  • Horn and buzzer alarms
  • Engine preheating
  • 4-wheel brake
  • Rotating warning lamp
  • Emergency stop system
  • Emergency brake release
  • Tilt protection
  • Emergency lowering system
  • 4WD
  • Overload sensing system
  • Max allowable inclination up to 5°
  • Outrigger oscillating axle
  • 360°continuous turntable rotation
Optional features
  • Emergency stop system
  • Emergency brake release
  • Tilt protection
  • Emergency lowering system
  • 4WD
  • Overload sensing system
  • Max allowable inclination up to 5°
  • Outrigger oscillating axle
  • 360°continuous turntable rotation
